We focus on providing our customers with high-quality galvanized steel coils, color-coated coils, carbon steel coils, and various types of pipes for construction.

Oil Steel Pipe
API 5CT N80 casing pipe covers N80-1 and N80Q types. N80-1 and N80Q steel have same chemical composition and mechanical attributes, and their difference lies in the heat treatment. N80-1 steel is normalized and tempered, while N80Q steel is quenched and tempered. So N80Q steel has higher collapsing strength and internal pressure strength than N80-1 steel. When API 5CT N80 casing pipe is selected, the designer should clearly show N80-1 or N80Q.

Standard:ISO,JIS,ASTM,AS EN
✦Advantage: Competitive price and quality from our own factory
✦Certification : Approved by ISO9001, CE, SGS every year
✦ We promise that all steel sold will have a 2-year warranty period and will be responsible for every batch of goods you buy!
✦ We are a professional steel manufacturer with guaranteed quality. If you want to purchase products, please contact us for a more favorable price!

WhatsApp: +86 15266350020
Email: info@guoguanmetal.com
Oil Steel Pipe
API 5CT N80 casing pipe chemical composition:
GradeCSiMnPSCrNiCuMoV
N800.34-0.380.20-0.351.45-1.70≤0.020≤0.015≤0.15///0.11-0.16

API 5CT N80 casing pipe mechanical properties:

GradeTypeTotal elongationunder load %Yield strength MPaTensile strength min. MPa
min.max .
N8010.5552758689
N80Q0.5552758689

API 5CT N80 casing pipe specification:
Thread type: SC (Short round thread), LC (Long round thread), BC (Buttress thread)
Length: R1 (4.88-7.62m), R2 (7.62-10.36m), R3 (10.36-14.63m)

Outer  DiameterWall ThicknessWeightThreadedLength
inmmkg/mlb/ft
4 1/2″114.314.14-22.479.50-11.50LTC/STC/BTCR1/R2/R3
5″12717.11-35.8611.50-24.10LTC/STC/BTCR1/R2/R3
5 1/2″139.720.83-34.2314.00-23.00LTC/STC/BTCR1/R2/R3
6 5/8″168.2829.76-35.7220.00-24.00LTC/STC/BTCR1/R2/R3
7″177.825.30-56.5517.00-38.00LTC/STC/BTCR1/R2/R3
7 5/8″193.6835.72-63.6924.00-42.80LTC/STC/BTCR1/R2/R3
8 5/8″219.0835.72-72.9224.00-49.00LTC/STC/BTCR1/R2/R3
9 5/8″244.4848.07-86.9132.30-58.40LTC/STC/BTCR1/R2/R3
10 3/4″273.0548.73-97.7732.75-65.70LTC/STC/BTCR1/R2/R3
11 3/4″298.4562.50-89.2942.00-60.00LTC/STC/BTCR1/R2/R3
13 3/8″339.7271.43-107.1548.00-72.00LTC/STC/BTCR1/R2/R3

API 5CT N80 casing pipe has higher mechanical properties than J55 casing pipe and K55 casing pipe. With deeper downhole depth than J55 casing pipe and K55 casing pipe, API 5CT N80 casing pipe can be applied for the exploitation of middle-level oil and gas. API 5CT N80 casing pipe is broadly applied in natural gas as well as coal bed methane extraction, and geothermal wells.

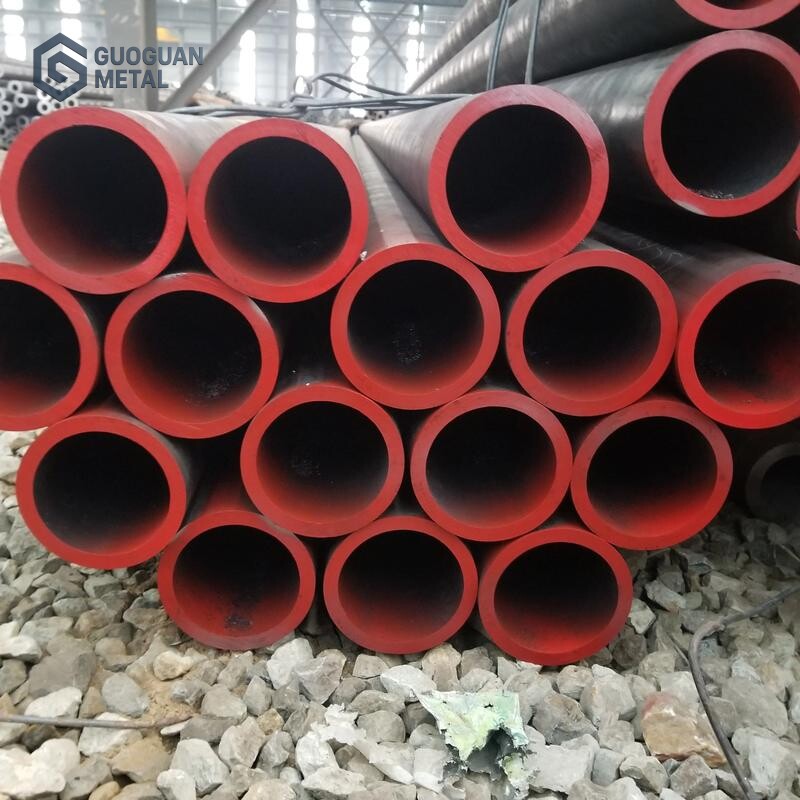

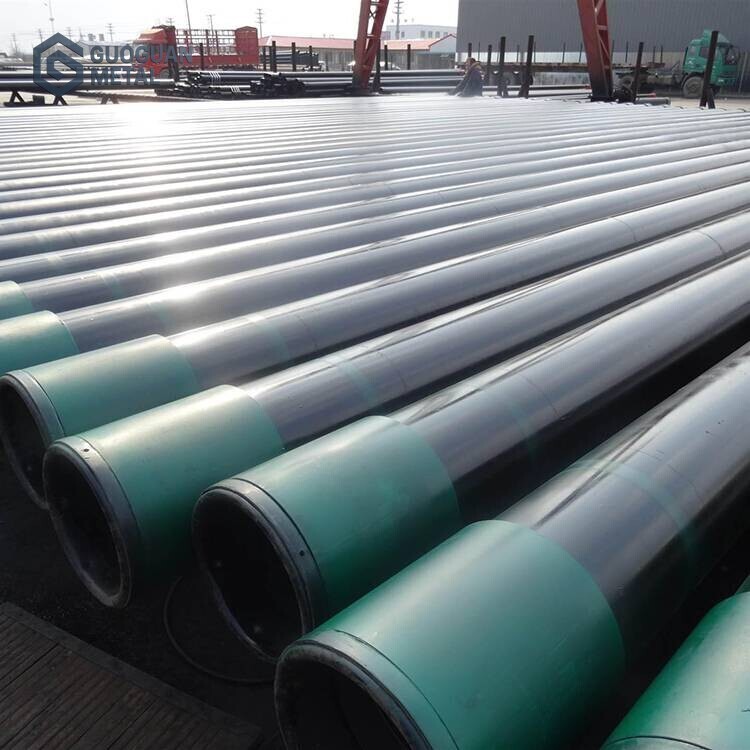

Product Show


Packaging And Transportation

Transport packaging is used to minimize product damage during transportation and distribution, ensure product safety, facilitate storage, transport, loading and unloading, and expedite handover and inspection. People utilize packaging for transportation, storage, and handling. Also known as outer packaging, its main function is to protect goods, prevent damage during storage and transportation, minimize the impact of various external conditions on the goods during transport, and facilitate inspection, inventory, and distribution.

Transport packaging should meet the following basic requirements:

Sufficient strength, rigidity, and stability;

Waterproof, moisture-proof, insect-proof, corrosion-proof, and theft-proof capabilities;

The selection of packaging materials should meet economic and safety requirements;

The weight, dimensions, markings, and form of the packaging should conform to international and national standards, facilitating handling and loading/unloading;

Reduce the labor intensity of workers and ensure safe and convenient operation.

The basic principles that should be followed in the design of transport packaging equipment include: standardization and serialization; containerization and large-scale principles; diversification and specialization principles; scientific principles; and ecological principles.
