We focus on providing our customers with high-quality galvanized steel coils, color-coated coils, carbon steel coils, and various types of pipes for construction.

1008 Cold Rolled Steel Plate
It is an economical, general purpose steel grade offering moderate strength and toughness. As a standard grade, 1008 steel is used in many common, low-stress applications. Weldability (spot, projection, butt, and fusion) and brazeability are excellent.

Standard:ISO,JIS,ASTM,AS EN
✦Advantage: Competitive price and quality from our own factory
✦Certification : Approved by ISO9001, CE, SGS every year
✦ We promise that all steel sold will have a 2-year warranty period and will be responsible for every batch of goods you buy!
✦ We are a professional steel manufacturer with guaranteed quality. If you want to purchase products, please contact us for a more favorable price!

WhatsApp: +86 15266350020
Email: info@guoguanmetal.com
1008 Cold Rolled Steel Plate

This alloy is generally used for "commercial quality" cold rolled steel sheet. It is an economical, general purpose steel grade offering moderate strength and toughness. As a standard grade, 1008 steel is used in many common, low-stress applications. Weldability (spot, projection, butt, and fusion) and brazeability are excellent. Applications include extruded, cold headed, cold upset, and cold pressed parts and forms. It has a very good surface finish that is far superior to hot rolled A36.


Product Parameters

Product Name

1008 Cold Rolled Steel Plate

Production Process

Hot Rolling, Cold Rolling

Material Standards

AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.

Width

100mm-3000mm

Length

1m-12m, or Customized Size

Thickness

0.1mm-400mm

Delivery Conditions

Rolling, Annealing, Quenching, Tempered or Standard

Surface Process

Ordinary, Wire Drawing, Laminated Film


Chemical Composition

ElementContent (%)
Iron, Fe99.31-99.7 %
Manganese, Mn0.30-0.50 %
Carbon, C0.10 %
Sulfur, S0.050 %
Phosphorous, P0.040 %


Mechanical Properties

PropertiesMetricImperial
Tensile strength340 MPa49300 psi
Yield strength (depending on temper)285 MPa41300 psi
Elastic modulus190-210 Gpa27557-30458 ksi
Bulk modulus (typical for steel)200 GPa29000 ksi
Shear modulus (typical for steel)80.0 GPa11600 ksi
Poisson’s ratio0.27-0.300.27-0.30
Elongation at break (in 50 mm)20 %20 %
Reduction of area45 %45 %
Hardness, Brinell9595
Hardness, Knoop (converted from Brinell hardness)113113
Hardness, Rockwell B (converted from Brinell hardness)5555
Hardness, Vickers (converted from Brinell hardness)9898

Machinability (based on AISI 1212 steel as 100 machinability)

The machinability of group I bar, rod, and wire products can be improved by cold drawing)

5555

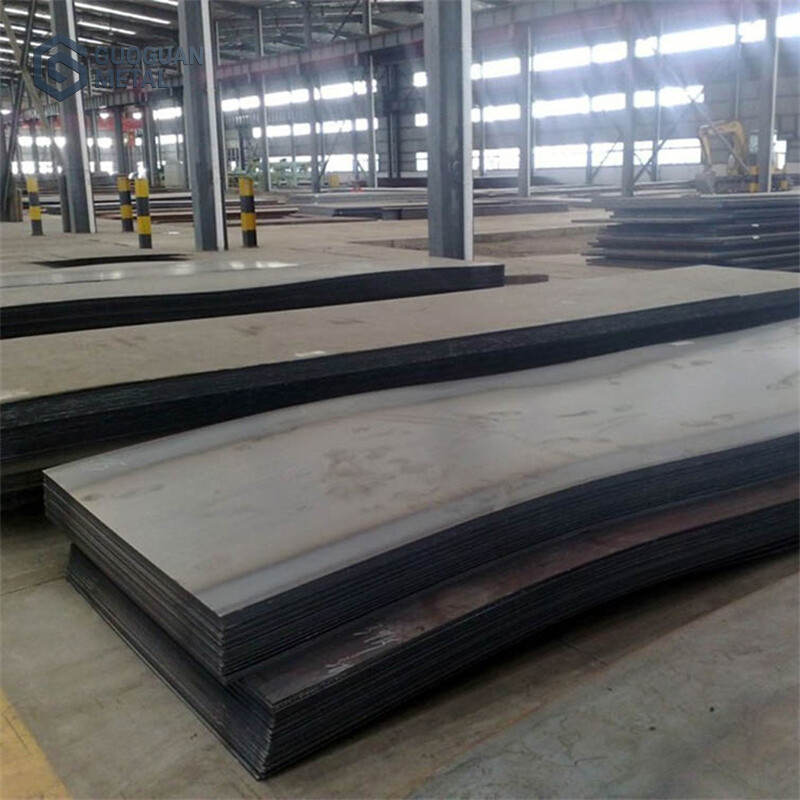

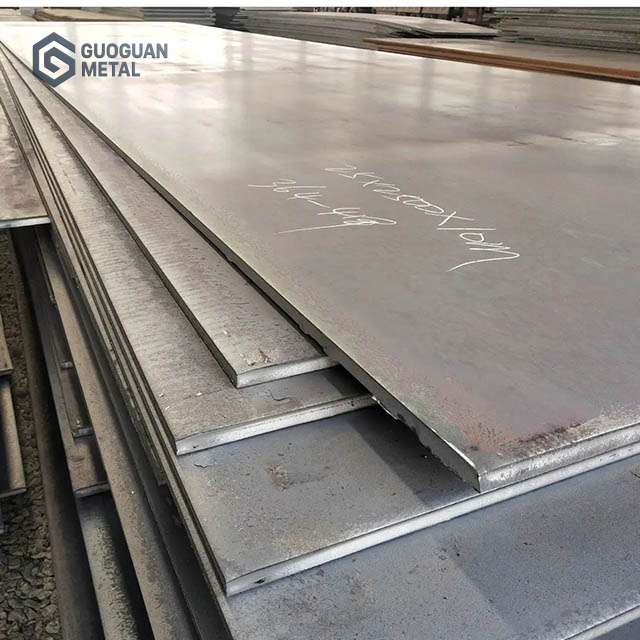

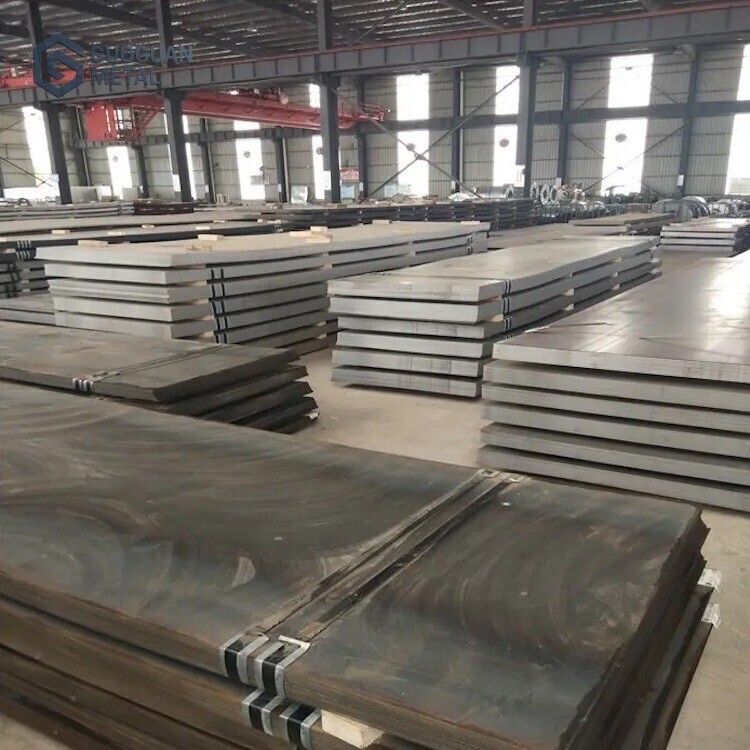

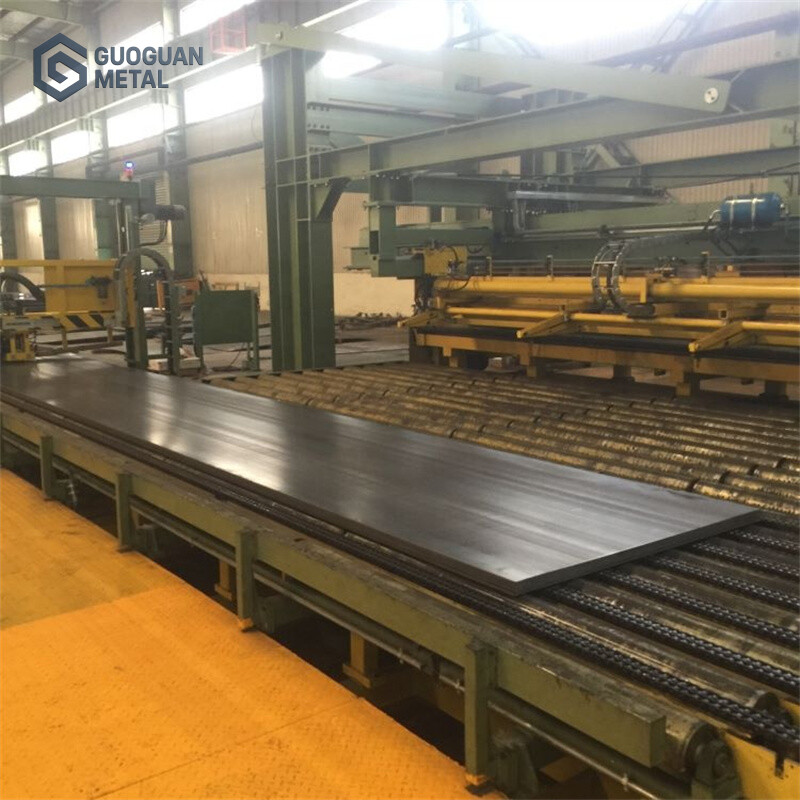

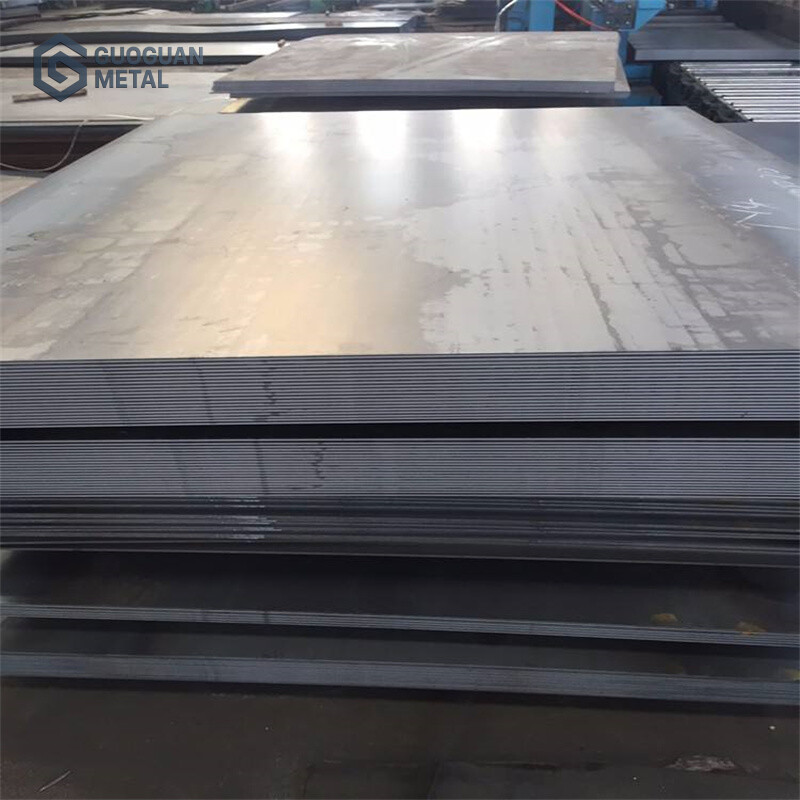

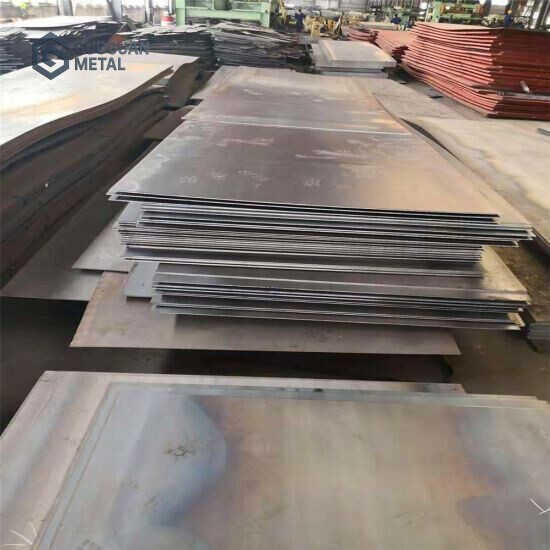

Product Show

碳钢板1


Packaging And Transportation

Transport packaging is used to minimize product damage during transportation and distribution, ensure product safety, facilitate storage, transport, loading and unloading, and expedite handover and inspection. People utilize packaging for transportation, storage, and handling. Also known as outer packaging, its main function is to protect goods, prevent damage during storage and transportation, minimize the impact of various external conditions on the goods during transport, and facilitate inspection, inventory, and distribution.

Transport packaging should meet the following basic requirements:

Sufficient strength, rigidity, and stability;

Waterproof, moisture-proof, insect-proof, corrosion-proof, and theft-proof capabilities;

The selection of packaging materials should meet economic and safety requirements;

The weight, dimensions, markings, and form of the packaging should conform to international and national standards, facilitating handling and loading/unloading;

Reduce the labor intensity of workers and ensure safe and convenient operation.

The basic principles that should be followed in the design of transport packaging equipment include: standardization and serialization; containerization and large-scale principles; diversification and specialization principles; scientific principles; and ecological principles.
