We focus on providing our customers with high-quality galvanized steel coils, color-coated coils, carbon steel coils, and various types of pipes for construction.

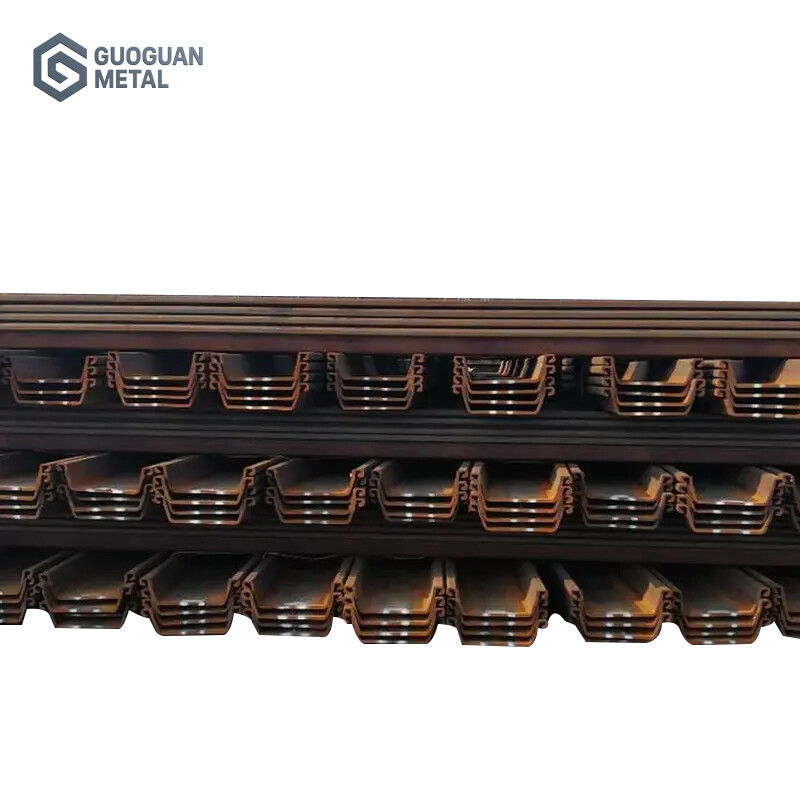

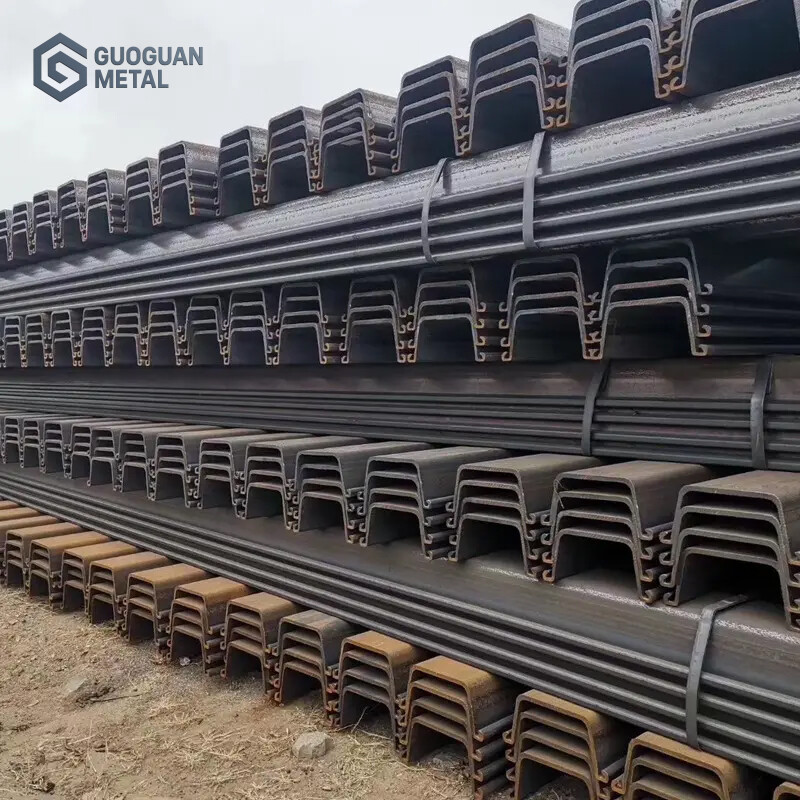

Steel Sheet Pile
1. We can produce all types of sheet piles,pipe piles and accessories,we can adjust our machines to produce in any width x height x thickness .
2. We can produce single length up to over 100m,and we can do all painting,cutting,welding etc fabrications in factory .
3. Fully internationally certified:ISO9001,ISO14001,ISO18001,CE,SGS,BV etc..

Standard:ISO,JIS,ASTM,AS EN
✦Advantage: Competitive price and quality from our own factory
✦Certification : Approved by ISO9001, CE, SGS every year
✦ We promise that all steel sold will have a 2-year warranty period and will be responsible for every batch of goods you buy!
✦ We are a professional steel manufacturer with guaranteed quality. If you want to purchase products, please contact us for a more favorable price!

WhatsApp: +86 15266350020
Email: info@guoguanmetal.com
Steel Sheet Pile
All specifications products can be customized according to customer requirements
Product name sheet pile
StandardAiSi, ASTM, DIN, GB, JISEN10249,EN10248,JIS A 5523 and JIS A 5528,ASTM A328 / ASTM A328M,etc
Steel gradeSGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC,S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690,etc
MaterialsQ234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect.
TechniqueCold formed interlock or clutches
CertificateCE, ISO ,etc
Length9,12, 15 ,20 m as required Max.24m, Any length as customer's request
Width400-750mm as required
Thickness6-25mmas required
ShapeU,Z,L,S,Pan,Flat,hat profiles
PackageBundle in bulk,seaworthy packing or as customer's request
 ApplicationCofferdam /River flood diversion and control/ Water treatment system fence/Flood protection Wall/Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/Breakwater/Weir Wall/ Fixed slope/ Baffle wall, etc.
U Type:
Product Model
JU400*100JU400*125JU400*170JU600*180JU600*205JU600*210JU600*226JU750*225
W(mm)
400400400600600600600750
H(mm)
100125125170180205210225
T(mm)
10.51315.513.410181914.6
Single Rootcm²61.1876.4296.99103.991.8135.3145140.6

kg/m486076.181.672.1106.2114110.4

Ix (cm4)1240222046705220643486301128010445

cm³152223362376438539649602
Plate Surface Per Metercm²153191242.5173.2153225.5241.7187.5

Kg/cm²120.1149.9190.4136120.1177190147.2

cm4874016800386003240034645567007232056301

cm³8741340227018001690270032002502

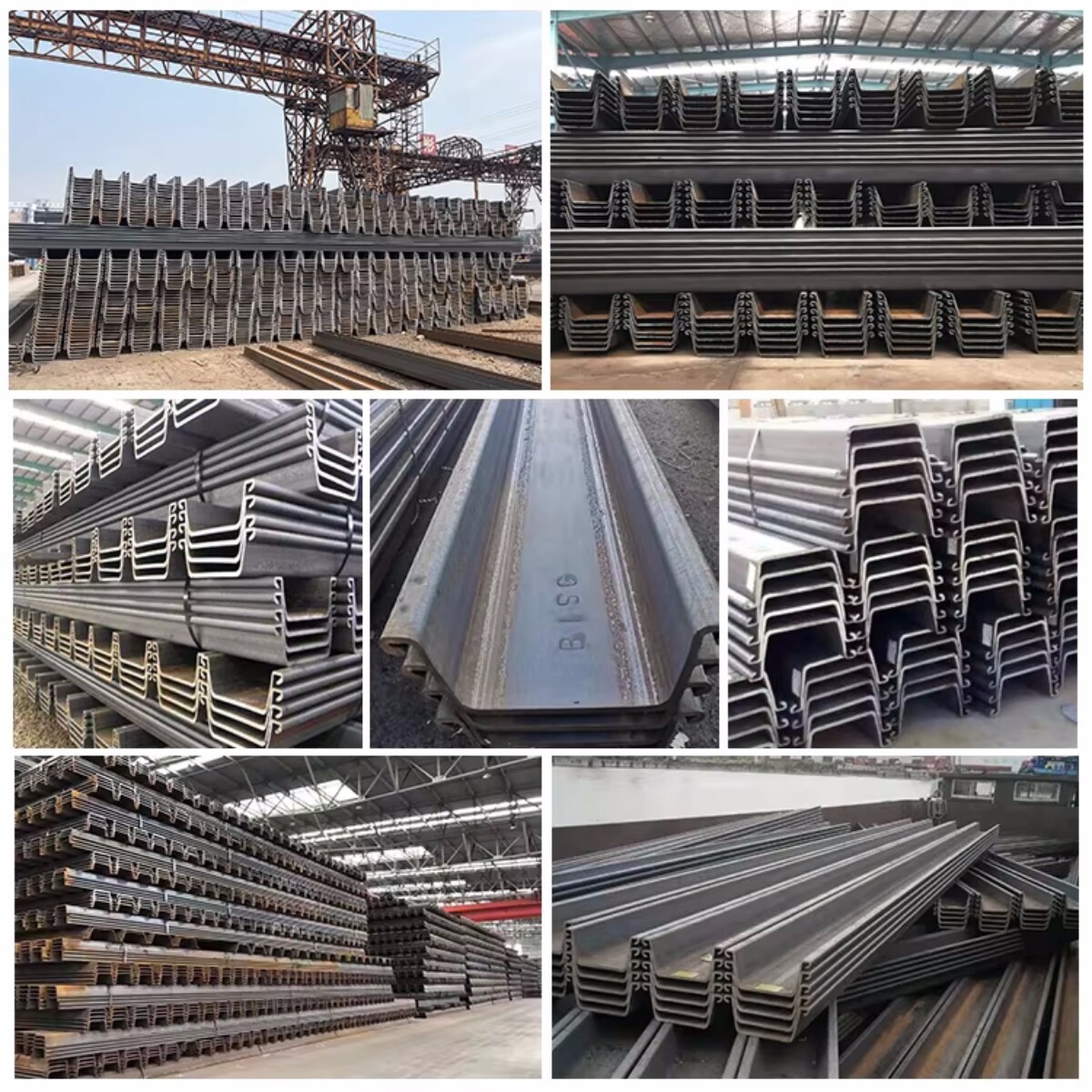

Product Show


Packaging And Transportation

Transport packaging is used to minimize product damage during transportation and distribution, ensure product safety, facilitate storage, transport, loading and unloading, and expedite handover and inspection. People utilize packaging for transportation, storage, and handling. Also known as outer packaging, its main function is to protect goods, prevent damage during storage and transportation, minimize the impact of various external conditions on the goods during transport, and facilitate inspection, inventory, and distribution.

Transport packaging should meet the following basic requirements:

Sufficient strength, rigidity, and stability;

Waterproof, moisture-proof, insect-proof, corrosion-proof, and theft-proof capabilities;

The selection of packaging materials should meet economic and safety requirements;

The weight, dimensions, markings, and form of the packaging should conform to international and national standards, facilitating handling and loading/unloading;

Reduce the labor intensity of workers and ensure safe and convenient operation.

The basic principles that should be followed in the design of transport packaging equipment include: standardization and serialization; containerization and large-scale principles; diversification and specialization principles; scientific principles; and ecological principles.
