304L Stainless Steel Plate
304L stainless steel is remarkably similar to 304 stainless steel in their chemical composition. but there is one key difference. In grade 304 stainless steel, the maximum carbon content is set at 0.08%, whereas grade 304L stainless steel has a maximum carbon content of 0.03%. This is why the “L” in 304L can be interpreted as extra-low carbon. It is widely used in the production of equipment and parts that require

Standard:ISO,JIS,ASTM,AS EN
✦Advantage: Competitive price and quality from our own factory
✦Certification : Approved by ISO9001, CE, SGS every year
✦ We promise that all steel sold will have a 2-year warranty period and will be responsible for every batch of goods you buy!
✦ We are a professional steel manufacturer with guaranteed quality. If you want to purchase products, please contact us for a more favorable price!

WhatsApp: +86 15266350020
Email: info@guoguanmetal.com
304L Stainless Steel Plate

Product Parameters


Product Name

304L Stainless Steel Plate

Type

Plate

Thickness

0.3mm-200mm

Length

2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.

Width

40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.

Scope of Application

Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging,

Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.

Certificate

ISO, SGS, BV, etc.

Production Technology

Hot Rolling, Cold Rolling

Edge Processing

Edging, Trimming


Chemical Composition

C

Si

Mn

Cr

Ni

S

P

≤ 0.03

≤1.0

≤ 2.0

18.0~20.0

8.0~12

≤ 0.03

≤ 0.035


Mechanical Properties

Tensile Strength Kb (MPa)

Yield Strength σ0.2 (MPa)

Elongation D5 (%)

Hardness

≥ 520

≥ 205

≥ 40

≤ 187HB ;≤ 90HRB;≤ 200HV


Physical Performance

Density(g/cm³)

Modulus of Elasticity(Gpa)

Coefficient of Thermal Expansion(10-6/°C)

Coefficient of Thermal Conductivity(W/m*K)

Resistivity(ΜΩ. cm)

8.03

193

16.9

16.2

72

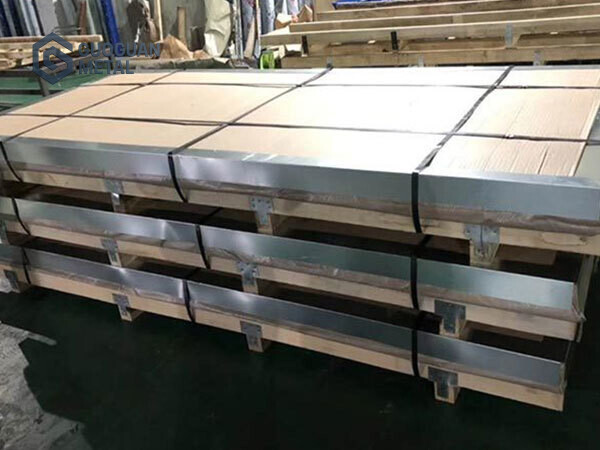

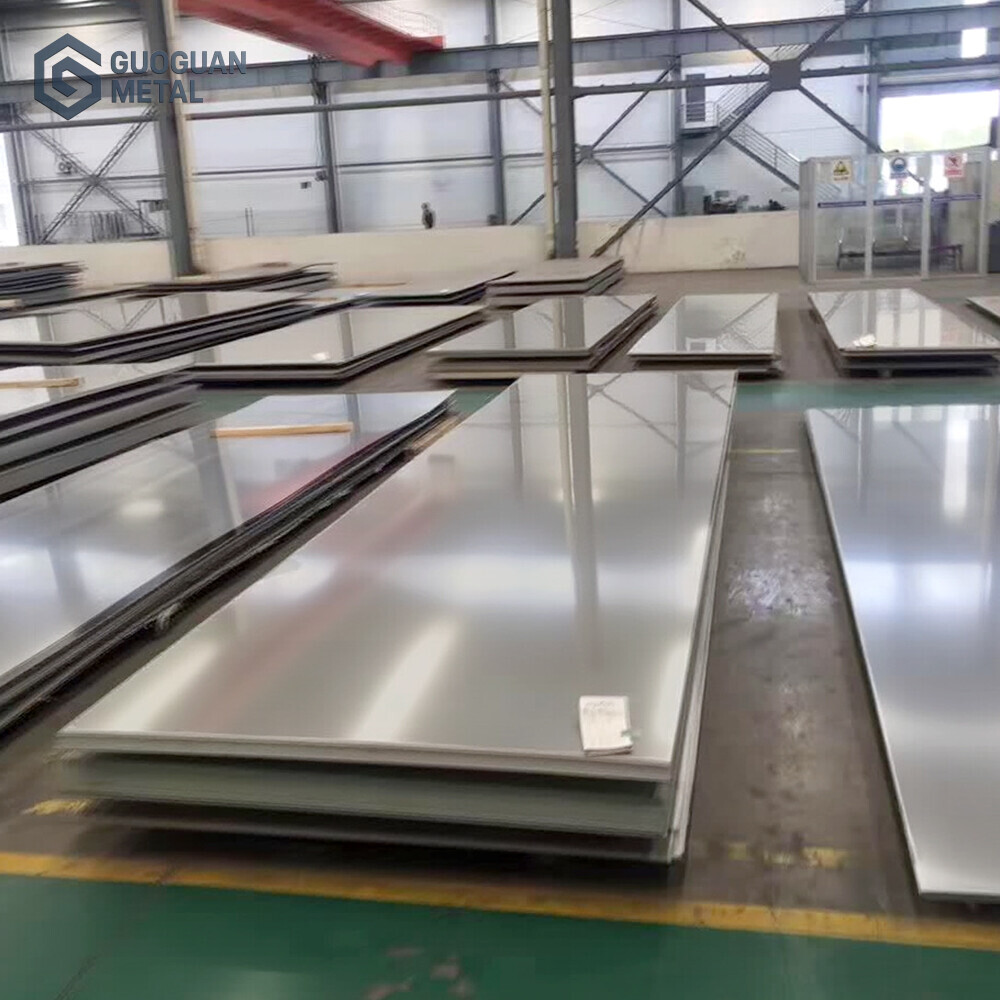

Product Show

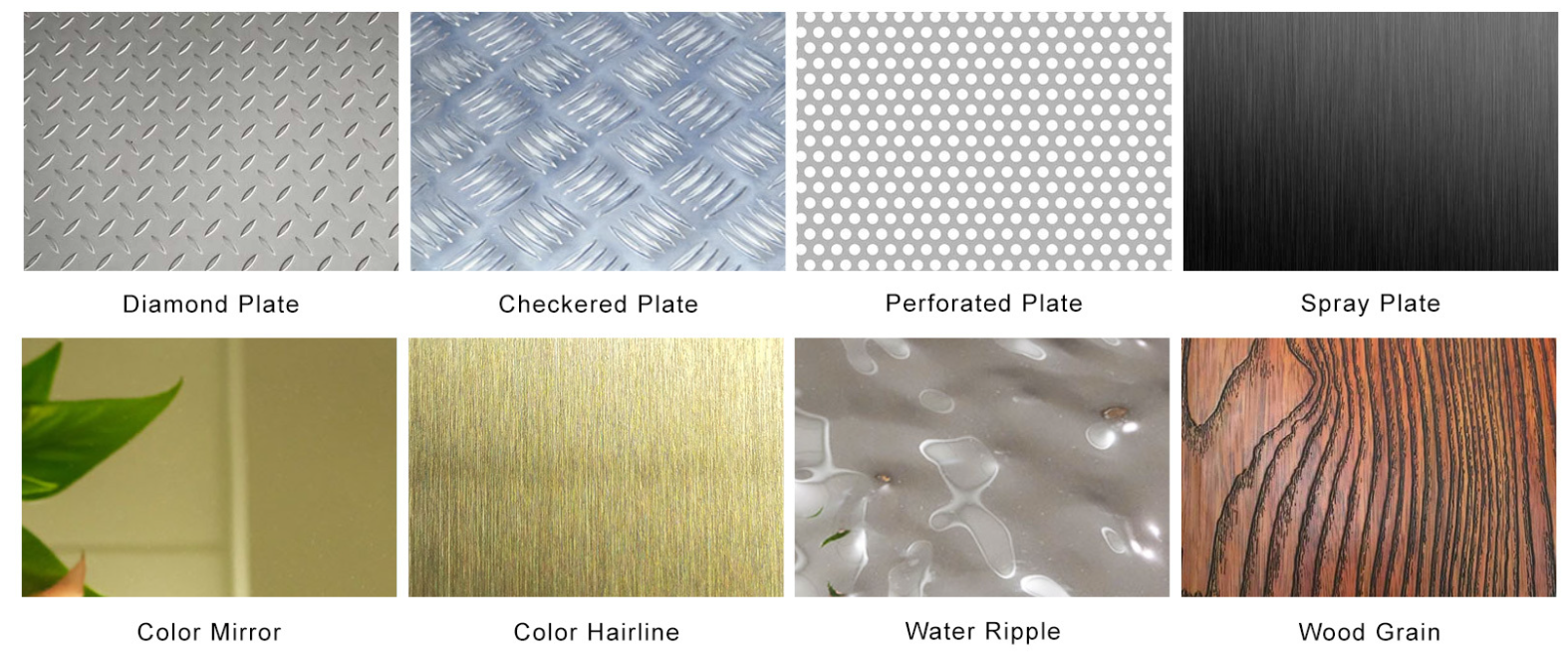

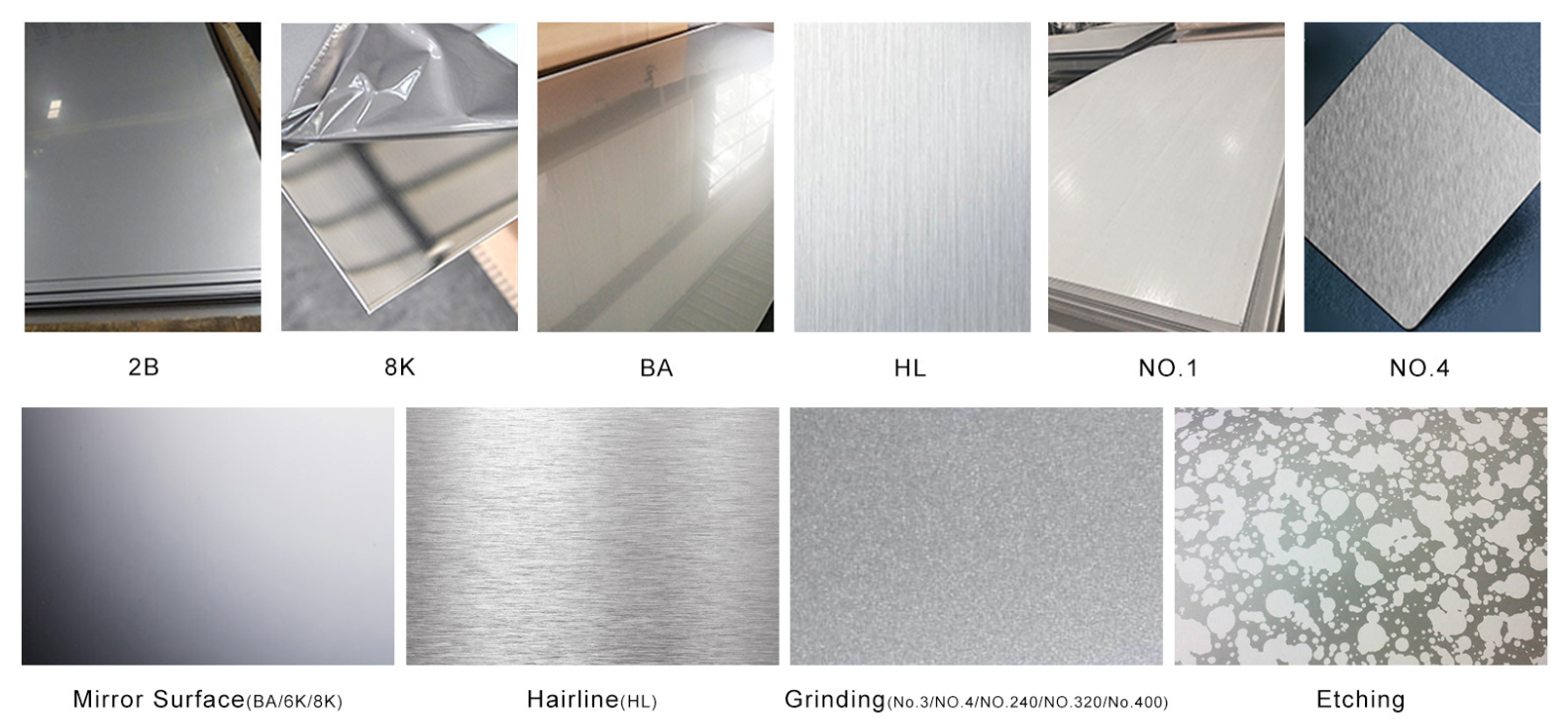

Surface Selection

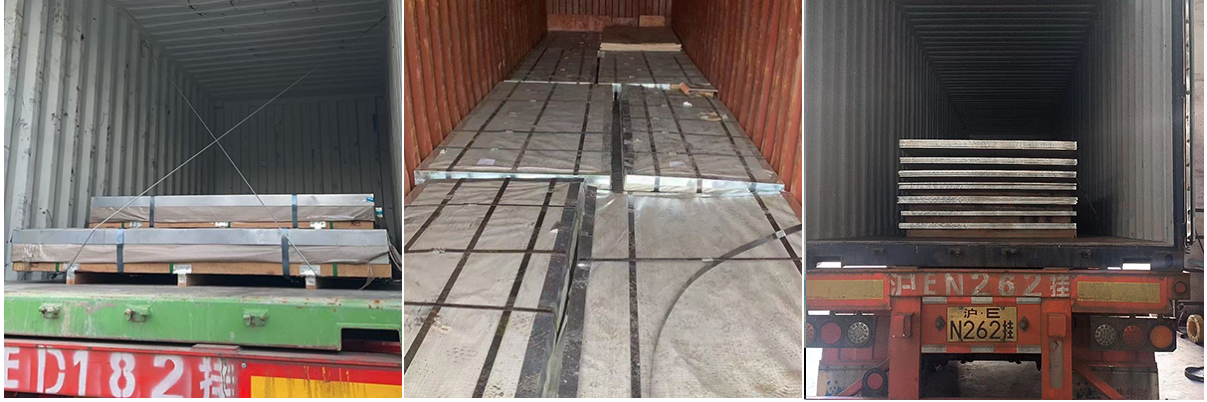

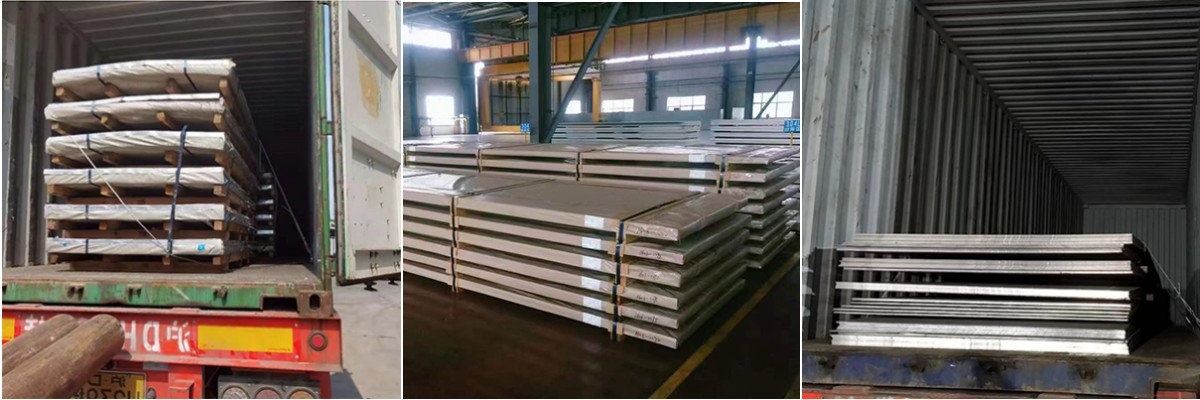

PACKING&SHIPPING



Packaging And Transportation

Transport packaging is used to minimize product damage during transportation and distribution, ensure product safety, facilitate storage, transport, loading and unloading, and expedite handover and inspection. People utilize packaging for transportation, storage, and handling. Also known as outer packaging, its main function is to protect goods, prevent damage during storage and transportation, minimize the impact of various external conditions on the goods during transport, and facilitate inspection, inventory, and distribution.

Transport packaging should meet the following basic requirements:

Sufficient strength, rigidity, and stability;

Waterproof, moisture-proof, insect-proof, corrosion-proof, and theft-proof capabilities;

The selection of packaging materials should meet economic and safety requirements;

The weight, dimensions, markings, and form of the packaging should conform to international and national standards, facilitating handling and loading/unloading;

Reduce the labor intensity of workers and ensure safe and convenient operation.

The basic principles that should be followed in the design of transport packaging equipment include: standardization and serialization; containerization and large-scale principles; diversification and specialization principles; scientific principles; and ecological principles.
